English2FHD0115C
● 2-level topology
● Electrical interface
● Soft shut down, Active clamping
| Product | Max Breakdown Voltage | Interface Type | Driving Mode | PWM | Max Switching Frequency | RGON | RGOFF | Power-Output/Channels(Max) | SO |
|---|---|---|---|---|---|---|---|---|---|
| 2FHD0115C17A2 | 1700V | Electrical | Direct | 5V / 15V | 50kHz | / | / | 1.2W | OD |
| 2FHD0115C17B2C-Y0401 | 1700V | Electrical | Direct | 15V | 50kHz | 1.5Ω | 2.4Ω | 1.2W | 15V |
Product Information
Product Details

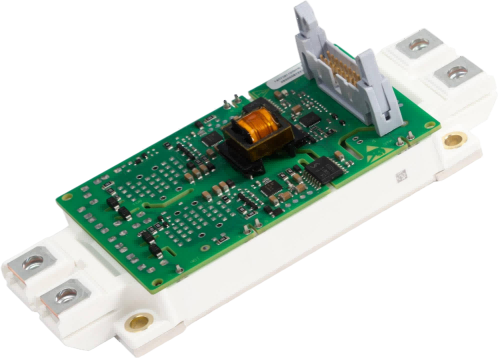

The plug-and-play 2FHD0115C gate driver is based on Firstack intelligent chip technology. It supports the operation of up to 1700V EconoDUALTM IGBT power modules with 15V gate voltage in on-state.
The 2FHD0115C features dual-channel with electrical or optical interfaces, and supports 2-level topologies.
Firstack intelligent fault management allows the gate driver to differentiate between faults.
Highly Reliable and Ready-to-use
Plug-and-play gate driver solution for up to 1700V EconoDUALTM IGBT
Dual-channel gate driver
15V gate voltage in on-state
1.2W output power per channel at maximum ambient temperature
±20A gate peak current
Short-circuit protection by Vce monitoring
Electrical interface
-40°C to 85°C operating ambient temperature
Intelligent fault management
Protection
Active clamping
Undervoltage protection
Short-circuit protection (soft shut down)
Fault blocking signal
Status feedback
Safety Segregation Standard
EN50178
Level-2 protection
