English2FHC0240
● Dual channel, 2W / 40A
● Reinforced insulation
● Soft shut down, Undervoltage, Miller clamping
● Reinforced insulation
● Soft shut down, Undervoltage, Miller clamping
| Part number | Channels | Coating | Operating mode | Switching frequency | Gate voltage | Supply voltage | Input signal |
|---|---|---|---|---|---|---|---|
| 2FHC0240C20A1 | 2 | No | Direct | 100kHz | 18/-4V | 15V | 15V |
| 2FHC0240C20A1C | 2 | Yes | Direct | 100kHz | 18/-4V | 15V | 15V |
Product Information
Product Details

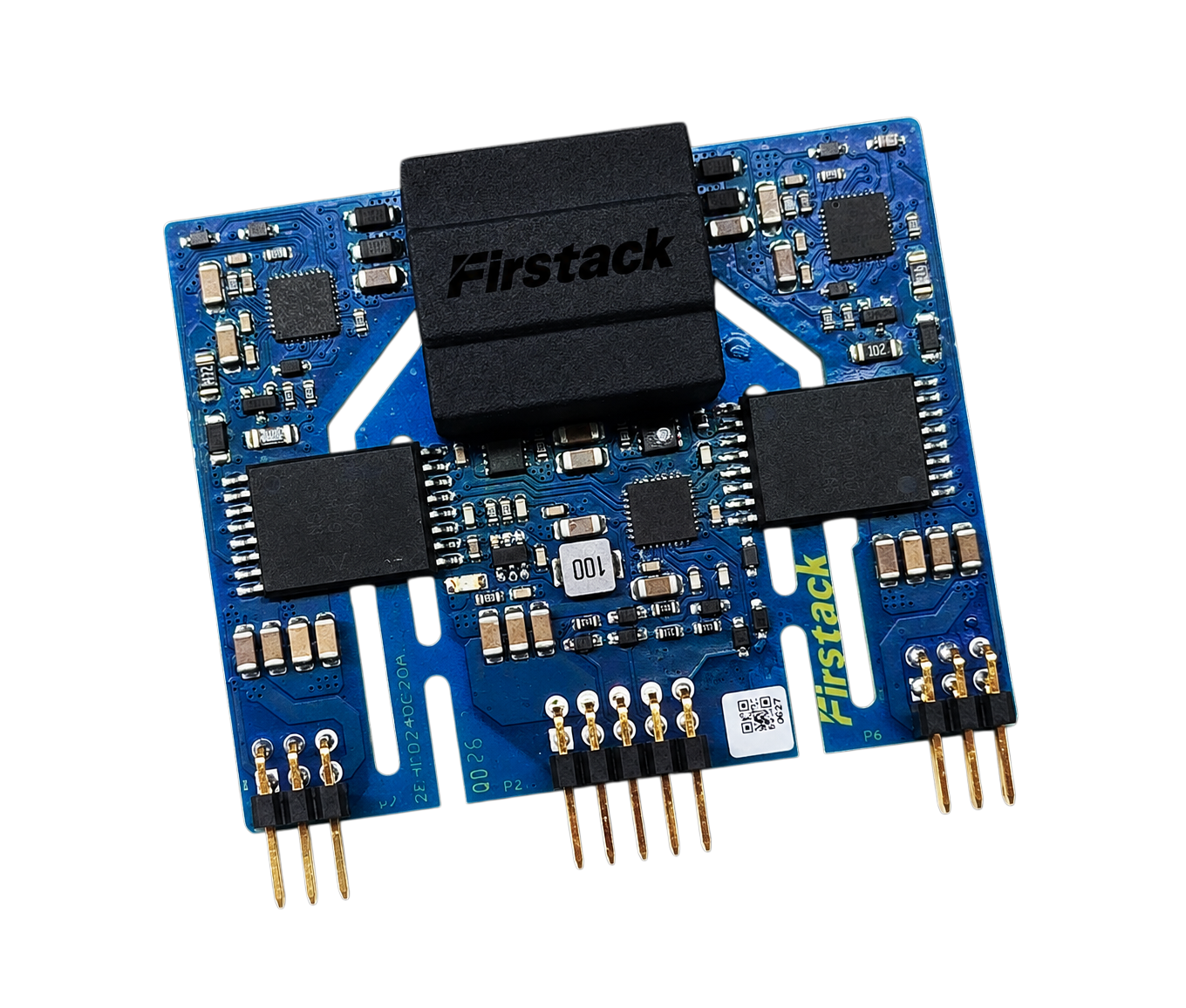

The compact 2FHC0240 gate driver core is based on digital ASIC by Firstack technology. It supports the operation of up to 2000V SiC modules, dual-channel, with Miller clamping, and meets UL61800.
Compact and Highly Integrated
Gate driver core for 2000V SiC
Dual-channel
2W output power per channel at maximum ambient temperature
40A gate peak current
Miller clamping
Electrical interface
-40°C to 85°C operating ambient temperature
Intelligent fault management
Safety Segregation Standard
UL61800
IEC60270
