English4FHP0435E82L2
● 2-level topology
● Module center space 82mm
● SSD, UVLO, Intelligent fault management
| Product | Max Breakdown Voltage | PWM | Driving Mode | Module center space | Max Switching Frequency | Gate Turn-on Voltage | Gate Turn-off Voltage | Power-Output Channels(Max) |
|---|---|---|---|---|---|---|---|---|
| 4FHP0435E82L2 | 1700V | 5V/15V | Half-bridge | 63.5mm | 50kHz | 15V | -7V | 4W |
Product Information
Product Details

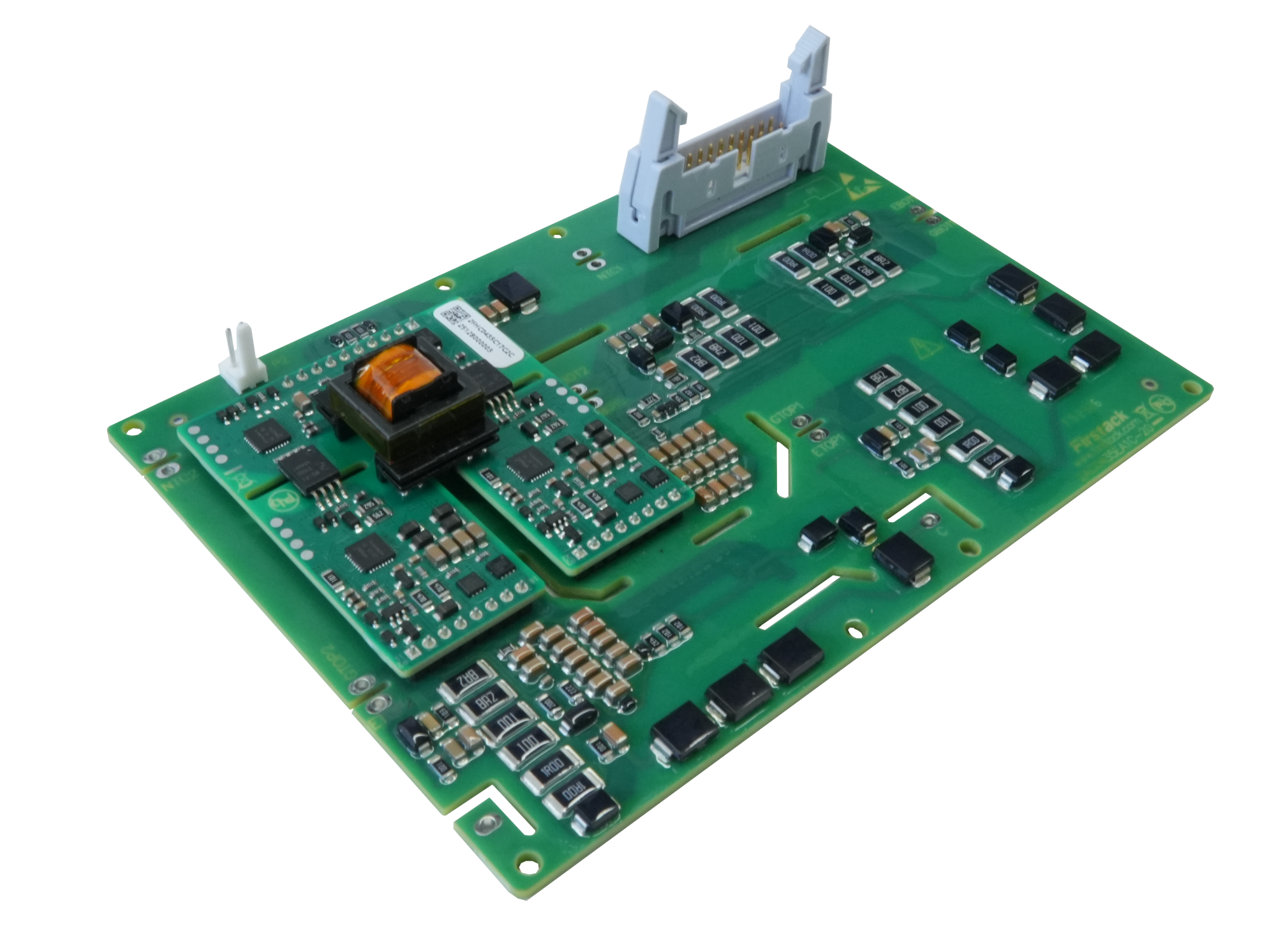

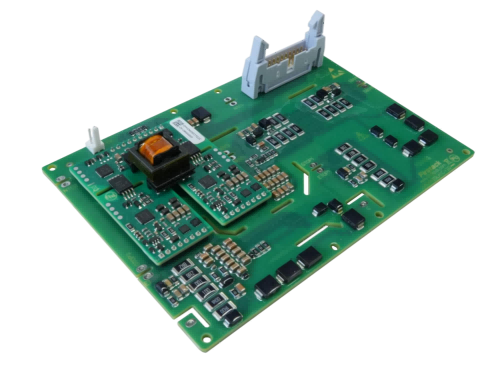

The 4FHP0435E82L2 is a solution for EconoDualTM package IGBT 2-level 2 parallel connection based on Firstack digital technology. Module center spacing of 82mm, drive peak current ± 35A, single drive power of 4W, with soft shutdown, active clamping and other functions.
Highly Reliable and Ready-to-use
Plug-and-play gate driver for up to 1700V EconoDuaTM IGBT
Dual-channel gate driver
15V gate voltage in on-state
4W output power per channel at maximum ambient temperature
±35A gate peak current
Short-circuit protection by Vce monitoring
-40°C to 85°C operating ambient temperature
Intelligent fault management
Protection
Active clamping
Undervoltage protection
Short-circuit protection (soft shut down)
Intelligent fault feedback
Safety Segregation Standard
EN50178
Level-2 protection
