● 2-level topology
● SSD, UVLO, Intelligent fault management
| Product | Paralleling Supported | Interface Type | Driving Mode | SO | Max Switching Frequency | Gate Turn-on Voltage | Gate Turn-off Voltage | Power-Output/Channels(Max) | RGON | RGOFF | PWM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2FHD0620M17C1-S0101 | 2~4 | Electrical | Direct | 15V | 100kHz | 18V | -4V | 6W | 2.35Ω | 2.35Ω | 15V |
Product Information
Product Details
The 2FHD0620 gate driver is designed for 1700V EconoDualTM SiC MOSFET with 15~20V positive gate voltage and -2~-4V negative gate voltage in on-state.
The 2FHD0620 features dual-channel with electrical interfaces, and supports 2-level topologies.

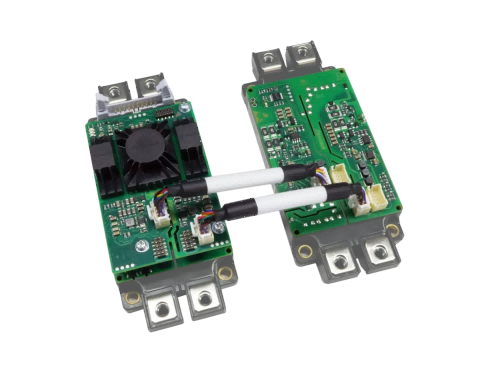

The 2FHD0620 is a high-performance, dual-channel SiC gate driver developed independently by Firstack based on intelligent chip technology. It can be used individually or in combination with the adaptor board (connected by a set of cables), easily parallelise SiC modules with configurable gate voltages for single modules in the EconoDualTM package or 4 in parallel. The architecture is able to safely and reliably drive the SiC modules with high flexibility and system scalability.
Compact and Highly Integrated
Gate driver for EconoDualTM SiC MOSFET
Dual-channel
15~20V positive gate voltage
-2~-4V negative gate voltage
6W output power per channel at maximum ambient temperature
-15A/20A gate peak current
Electrical interface
-40°C to 85°C operating ambient temperature
Distributed NTC sampling
Protection
Short-Circuit Protection (Soft Shut Down)
UVLO
Miller Clamping
Intelligent Fault Management
