English2FHD0420V
● 4W / 20A, for EconoDual, 17mm
● 2-level topology
● Soft shut down, Undervoltage, Intelligent fault management
● 2-level topology
● Soft shut down, Undervoltage, Intelligent fault management
| Product | Interface Type | Driving Mode | PWM | SO | Max Switching Frequency | Gate Turn-on Voltage | Gate Turn-off Voltage | Power-Output/Channels(Max) | RGON | RGOFF |
|---|---|---|---|---|---|---|---|---|---|---|
| 2FHD0420V17A1-S0001 | Optical | Direct | 15V | 15V | 100kHz | 18V | -4V | 6W | 2.5Ω | 3Ω |
Product Information
Product Details

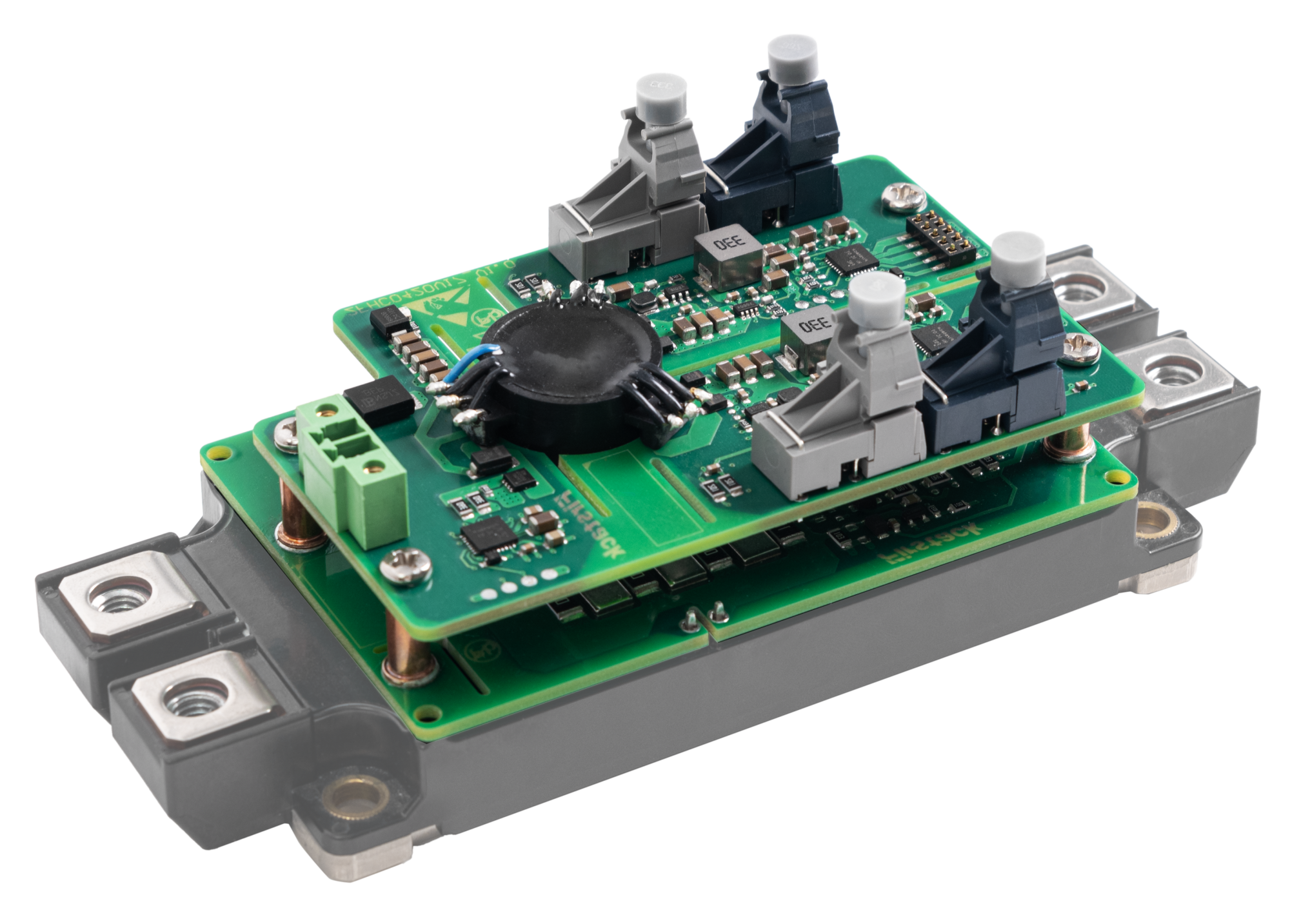

The 2FHD0420V gate driver is designed for 1700V EconoDualTM and 17mm housing SiC MOSFET with 15~20V positive gate voltage and -2~-4V negative gate voltage in on-state.
The 2FHD0420V features dual-channel with optical interfaces, and supports 2-level topologies.
Compact and Highly Integrated
Gate driver for EconoDualTM and 17mm SiC MOSFET
Dual-channel
15~20V positive gate voltage
-2~-4V negative gate voltage
4W output power per channel at maximum ambient temperature
20A gate peak current
Optical interface
-40°C to 85°C operating ambient temperature
Distributed NTC sampling
Protection
Short-Circuit Protection (Soft Shut Down)
UVLO
Miller Clamping
Intelligent Fault Management
