English2FHD0320C
● 2-level topology
● Electrical interface
● Vce sense, Active clamping, Soft shut down
| Product | Max Breakdown Voltage | Interface Type | Driving Mode | PWM | Max Switching Frequency | SO | Gate Turn-on Voltage | Gate Turn-off Voltage | Power-Output/Channels(Max) |
|---|---|---|---|---|---|---|---|---|---|
| 2FHD0320C12A2 | 1200V | Electrical | Direct | 5V/15V | 50kHz | OD | 15V | -8V | 3W |
| 2FHD0320C17A2 | 1700V | Electrical | Direct | 5V/15V | 50kHz | OD | 15V | -8V | 3W |
Product Information
Product Details

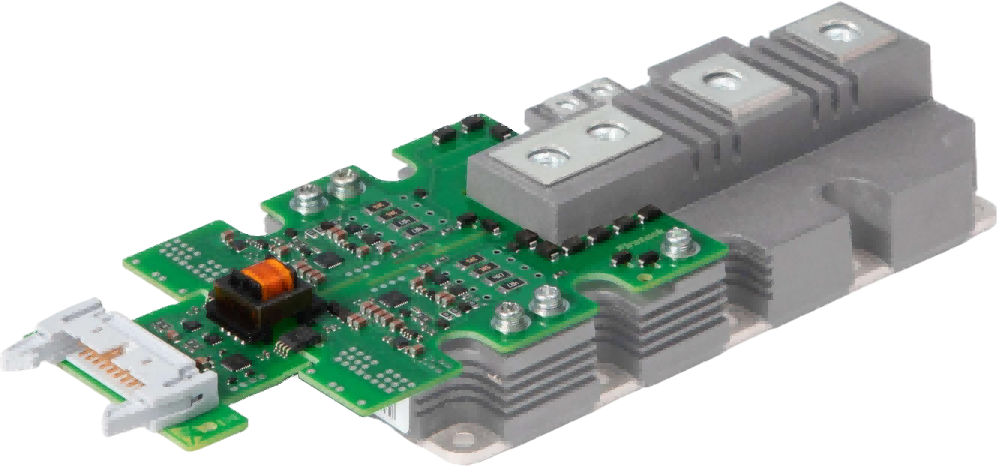

The plug-and-play 2FHD0320C gate driver is based on Firstack intelligent chip technology. It supports the operation of up to 1700V PrimePACKTM IGBT power modules with 15V gate voltage in on-state.
The 2FHD0320C features dual-channel with electrical interfaces, and adopts digital control method.
Firstack intelligent fault management allows the gate driver to differentiate between faults.
Highly Reliable and Ready-to-use
Plug-and-play gate driver solution for up to 1700V PrimePACKTM IGBT
Dual-channel gate driver
15V gate voltage in on-state
3W output power per channel at maximum ambient temperature
±20A gate peak current
Short-circuit protection by Vce monitoring
Electrical interface
-40°C to 85°C operating ambient temperature
Intelligent fault management
Protection
Active clamping
Undervoltage protection
Short-circuit protection (soft shut down)
Status feedback
Safety Segregation Standard
EN50178
Level-2 protection
