English2FHD0115V
● 2-level topology
● Optical interface
● Soft shut down, Active clamping
| Product | Max Breakdown Voltage | Interface Type | Driving Mode | PWM | Max Switching Frequency | RGON | RGOFF | Power-Output/Channels(Max) |
|---|---|---|---|---|---|---|---|---|
| 2FHD0115V17A1C-Y0001 | 1700V | Optical | Direct | 5V / 15V | 50kHz | 20/8Ω | 39/8Ω | 1.2W |
| 2FHD0115V17A1C-Y0002 | 1700V | Optical | Direct | 15V | 50kHz | 33/8Ω | 51/8Ω | 1.2W |
Product Information
Product Details

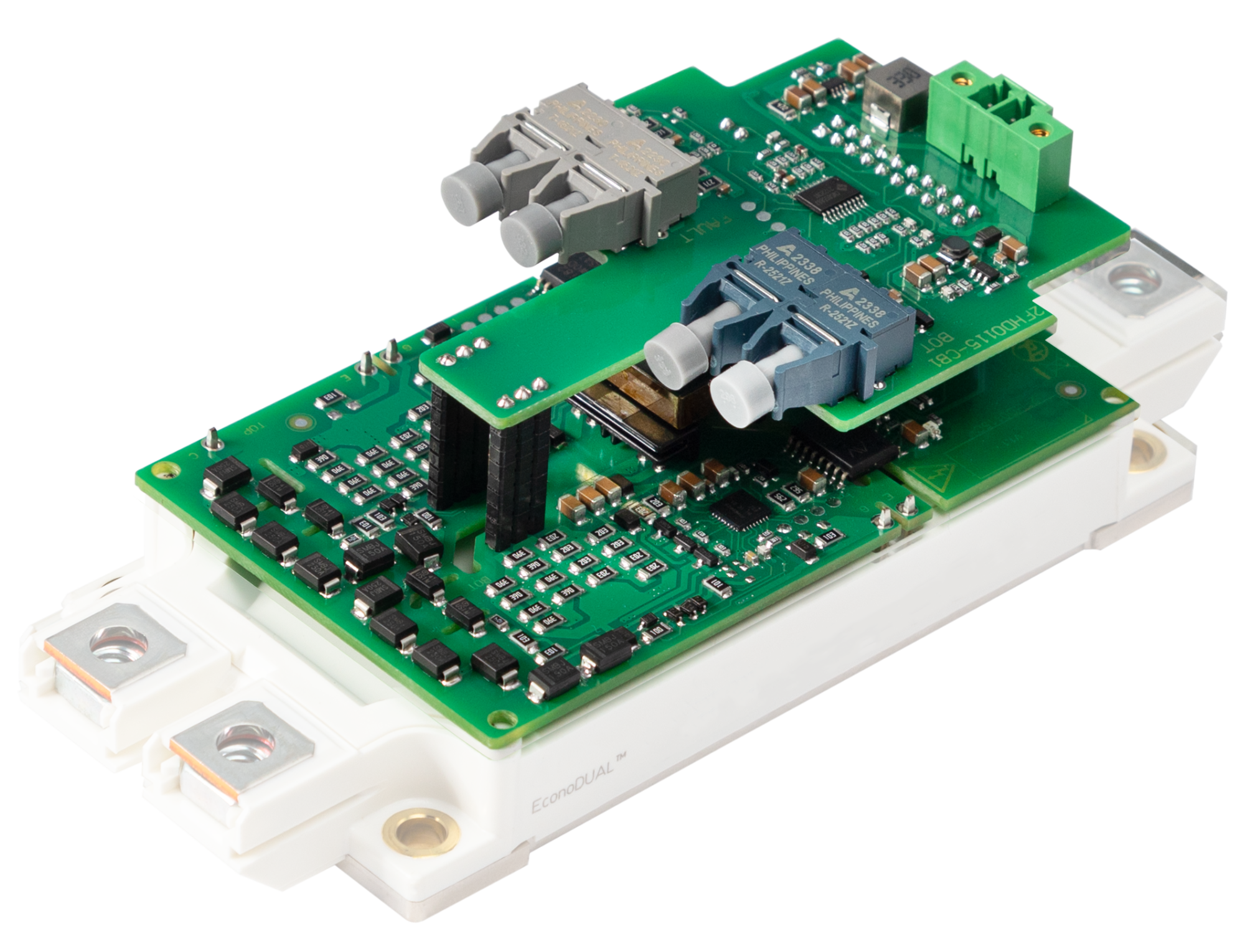

The plug-and-play 2FHD0115V gate driver is based on Firstack intelligent chip technology. It supports the operation of up to 1700V EconoDUALTM IGBT power modules with 15V gate voltage in on-state.
The 2FHD0115V features dual-channel with optical or optical interfaces, and supports 2-level topologies.
Firstack intelligent fault management allows the gate driver to differentiate between faults.
Highly Reliable and Ready-to-use
Plug-and-play gate driver solution for up to 1700V EconoDUALTM IGBT
Dual-channel gate driver
15V gate voltage in on-state
1.2W output power per channel at maximum ambient temperature
±20A gate peak current
Short-circuit protection by Vce monitoring
Electrical interface
-40°C to 85°C operating ambient temperature
Intelligent fault management
Protection
Active clamping
Undervoltage protection
Short-circuit protection (soft shut down)
Fault blocking signal
Status feedback
Safety Segregation Standard
EN50178
Level-2 protection
